石英晶體振蕩器
- 編號：63655864
- 頻率：32.768KHz
- 尺寸：3.2x1.5x0.9mm
ABS07-LR-32.768KHZ-6-1-T,3215mm,Abracon石英晶振
ABS07-LR-32.768KHZ-6-1-T,3215mm,Abracon石英晶振,ABS07-LR,工業應用晶振，美國進口晶振，Abracon艾博康晶振，型號：ABS07-LR系列，編碼為：ABS07-LR-32.768KHZ-6-1-T，頻率：32.768KHz，負載：6pF，精度：10ppm，工...
.jpg)
TXC,NDK,希華.jpg)
ABS07-LR-32.768KHZ-6-1-T,3215mm,Abracon石英晶振,ABS07-LR,工業應用晶振，美國進口晶振，Abracon艾博康晶振，型號：ABS07-LR系列，編碼為：ABS07-LR-32.768KHZ-6-1-T，頻率：32.768KHz，負載：6pF，精度：±10ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.9mm，兩腳貼片晶振，無源晶振，石英晶振，手表晶體，SMD晶振，石英晶體諧振器。具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點。應用程序：需要低ESR晶體的功率敏感設計，通信和測量設備，商業、消費和工業應用，無線通信應用。
ABS07-LR-32.768KHZ-6-1-T,3215mm,Abracon石英晶振,ABS07-LR,工業應用晶振，產品特點：
•保證ESR最大為50kΩ，適用于低功率設計
•0.9mm高，非常適合高密度電路板
•接縫密封陶瓷包裝提供卓越的環保性能
•耐熱性
•工業用延長工作溫度為-40°C至+85°C
格發TXC,NDK,希華.jpg)
.jpg)
ABS07-LR-32.768KHZ-6-1-T,3215mm,Abracon石英晶振,ABS07-LR,工業應用晶振,參數表
| Parameters | Min. | Typ. | Max. | Units | Notes | |||||||||||
| Frequency | 32.768 | kHz | ||||||||||||||
| Operation Mode | Flexural Mode (Tuning Fork) | ºC | ||||||||||||||
| Operating Temperature | -40 | +85 | ºC | |||||||||||||
| Storage Temperature | -55 | +125 | ºC | |||||||||||||
| Frequency Tolerance @+25°C | -20 | +20 | ppm | See options | ||||||||||||
| Temperature Coefficient: | -0.040 | -0.034 | -0.028 | ppm/°C² | ||||||||||||
| Turn-over temperature: | +20 | +25 | +30 | ºC | ||||||||||||
| Equivalent series resistance @+25°C | 50 | k? | ||||||||||||||
| Shunt capacitance (C0) | 1.3 | pF | ||||||||||||||
| Load capacitance (CL) | 6 | pF | ||||||||||||||
| Drive Level | 0.1 | 0.5 | µW | |||||||||||||
| Q value | 25000 | |||||||||||||||
| Aging@25°C±3°C | -3 | 3 | ppm | First year | ||||||||||||
| Insulation Resistance | 500 | M? | @ 100Vdc ± 15V | |||||||||||||
TXC,NDK,希華.jpg)

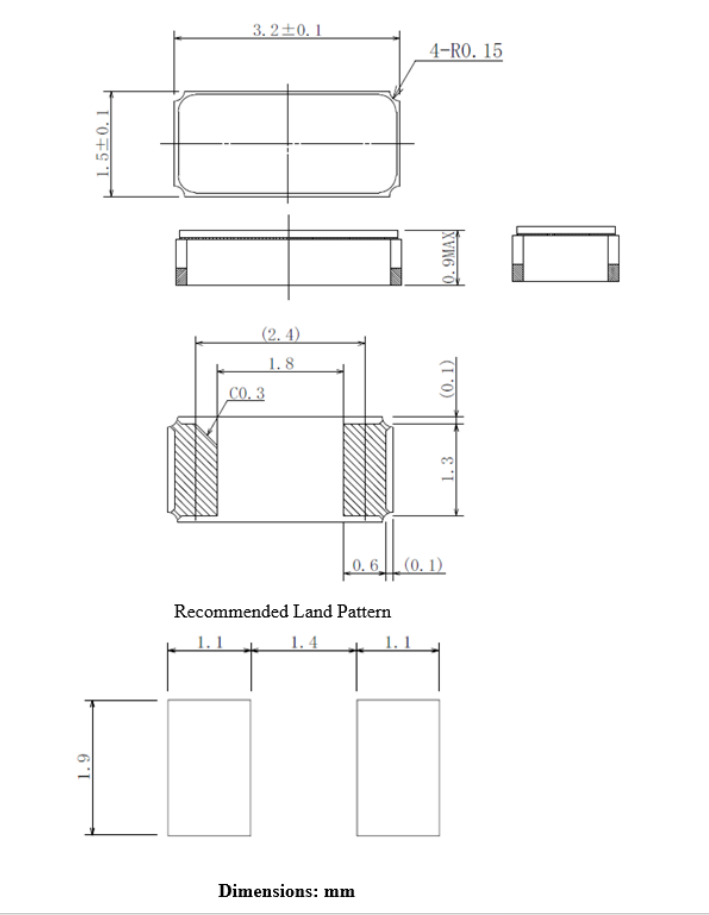

ABS07-LR-32.768KHZ-6-1-T,3215mm,Abracon石英晶振,ABS07-LR,工業應用晶振,尺寸圖
格.png)
| 原廠編碼 | 晶振廠家 | 型號 | 頻率 | 包裝/封裝 |
| ABS07-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-120-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | 艾博康晶振 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon艾博康 | ABS07L | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon艾博康 | ABS06L | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
