石英晶體振蕩器
- 編號：87964684
- 頻率：24.000MHz
- 尺寸：2.5x2.0mm
FC2BA,FC2BAEBDI24.0-T1,2520mm,24MHz,FOX輕薄型晶振
FC2BA,FC2BAEBDI24.0-T1,2520mm,24MHz,FOX輕薄型晶振,FC2BAEBEI24.0-T1,智能家居晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC2BA，(FormerFXA2520B)，編碼為：FC2BAEBDI24.0-T1，FC2BAEBEI24.0-T1，頻率為：24...
.jpg)
FC2BA,FC2BAEBDI24.0-T1,2520mm,24MHz,FOX輕薄型晶振,FC2BAEBEI24.0-T1,智能家居晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC2BA，(Former FXA2520B)，編碼為：FC2BAEBDI24.0-T1，FC2BAEBEI24.0-T1，頻率為：24.000MHz，頻率穩定性：±50ppm，頻率容差：±20ppm，工作溫度范圍：-40℃至+125℃，小體積晶振尺寸：2.5x2.0mm封裝，四腳貼片晶振，石英晶體諧振器，2520晶振，石英晶振，SMD晶振，無鉛晶振，耐高溫晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。無源晶振，被廣泛應用于：通訊設備晶振，無線藍牙晶振，平板電腦晶振，汽車電子，車載控制器，醫療設備等應用。
.jpg)
FC2BA,FC2BAEBDI24.0-T1,2520mm,24MHz,FOX輕薄型晶振,FC2BAEBEI24.0-T1,智能家居晶振,參數表
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||||
| Frequency Range | 24.000MHz | ||||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||||
| Frequency Stability, ref 25°C | (See options below) | ||||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -55°C ~ +105°C |
||||||||||||||
| Shunt Capacitance (CO) | 3 pF | ||||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||||
| Drive Level | 100 µW | ||||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | ||||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | ||||||||||||||
| Termination Finish |
Au (0.3~1µm) over Ni (1.27~8.89µm) |
||||||||||||||
| Seal Method | Seam | ||||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||||
| RoHS Compliant | Yes, no exemptions | ||||||||||||||
| REACH Compliant (latest version) | Yes |

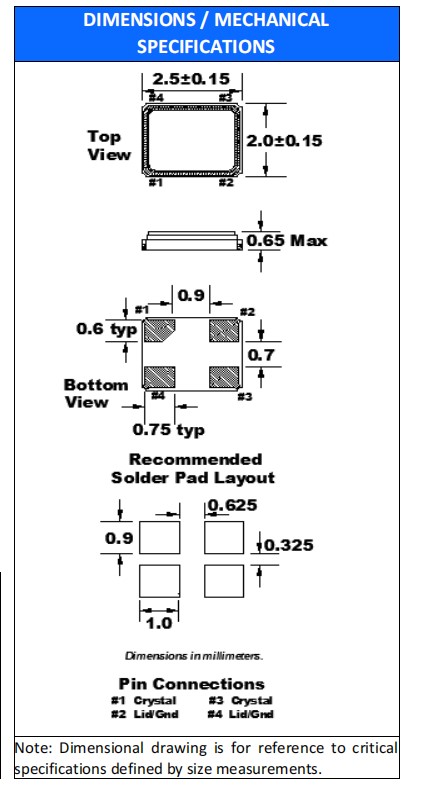

FC2BA,FC2BAEBDI24.0-T1,2520mm,24MHz,FOX輕薄型晶振,FC2BAEBEI24.0-T1,智能家居晶振,尺寸圖
| Part | 品牌 | 型號 | 頻率 | 工作溫度 |
| FC2BACBEI16.0-T1 | Fox晶振 | FC2BA | 16 MHz | -40°C ~ 12°C |
| FC2BACBEI16.0-T3 | Fox晶振 | FC2BA | 16 MHz | -40°C ~ 12°C |
| FC2BAEBDI12.0-T1 | Fox晶振 | FC2BA | 12 MHz | -40°C ~ 125°C |
| FC2BAEBDI16.0-T1 | Fox晶振 | FC2BA | 16 MHz | -40°C ~ 125°C |
| FC2BAEBDI20.0-T1 | 貼片晶振 | FC2BA | 20 MHz | -40°C ~ 125°C |
| FC2BAEBDI24.0-T1 | Fox晶振 | FC2BA | 24 MHz | -40°C ~ 125°C |
| FC2BAEBDI25.0-T1 | Fox晶振 | FC2BA | 25 MHz | -40°C ~ 125°C |
| FC2BAEBDI40.0-T1 | Fox晶振 | FC2BA | 40 MHz | -40°C ~ 125°C |
| FC2BAEBEI12.0-T1 | Fox晶振 | FC2BA | 12 MHz | -40°C ~ 125°C |
| FC2BAEBEI16.0-T1 | Fox晶振 | FC2BA | 16 MHz | -40°C ~ 125°C |
| FC2BAEBEI20.0-T1 | Fox晶振 | FC2BA | 20 MHz | -40°C ~ 125°C |
| FC2BAEBEI24.0-T1 | Fox晶振 | FC2BA | 24 MHz | -40°C ~ 125°C |
| FC2BAEBEI25.0-T1 | Fox晶振 | FC2BA | 25 MHz | -40°C ~ 125°C |
| FC2BAEBEI40.0-T1 | Fox晶振 | FC2BA | 40 MHz | -40°C ~ 125°C |
| FC2BAEBGI25.0-T1 | Fox晶振 | FC2BA | 25 MHz | -40°C ~ 125°C |
