- 編號：6511564
- 頻率：8MHZ
- 尺寸：3.2*2.5mm

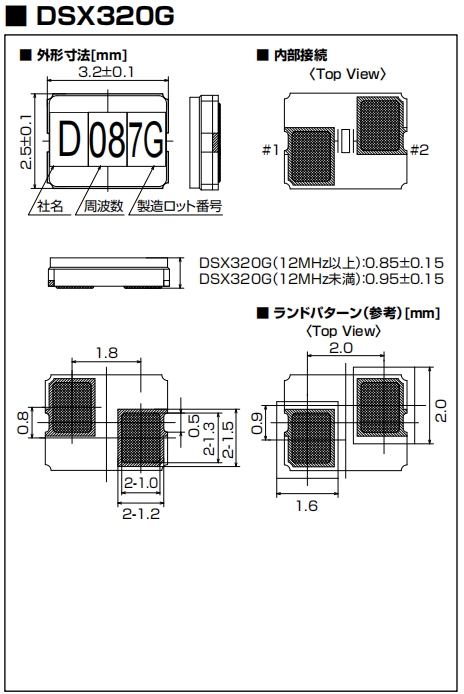

大真空KDS陶瓷晶振\DSX320G水晶振動子\1ZCM080000EE0A
大真空KDS陶瓷晶振\DSX320G水晶振動子\1ZCM080000EE0A，尺寸3225mm,頻率8MHZ，日本大真空晶振，KDS無源晶振，大真空株式會社，KDS小尺寸晶振，水晶振動子，貼片無源晶振，SMD晶振，無源晶振，陶瓷晶振，無源SMD晶振，...
TXC,NDK,希華.jpg)
大真空KDS陶瓷晶振\DSX320G水晶振動子\1ZCM080000EE0A，尺寸3225mm,頻率8MHZ，日本大真空晶振，KDS無源晶振，大真空株式會社，KDS小尺寸晶振，水晶振動子，貼片無源晶振，SMD晶振，無源晶振，陶瓷晶振，無源SMD晶振，3225mm貼片晶振，陶瓷諧振器，兩腳貼片晶振，SMD晶體諧振器，輕薄型晶振，8MHZ貼片晶振，便攜式設備晶振，小型設備晶振，儀器儀表晶振，汽車級專用晶振，平板電腦晶振，高精度晶振，高可靠性晶振，低損耗晶振，低功耗晶振，具有良好的耐熱性能.
貼片無源晶振產品適用于范圍廣泛，適合用于便攜式設備，小型設備，儀器儀表，汽車級，平板電腦等領域。大真空KDS陶瓷晶振\DSX320G水晶振動子\1ZCM080000EE0A.
格發TXC,NDK,希華.jpg)

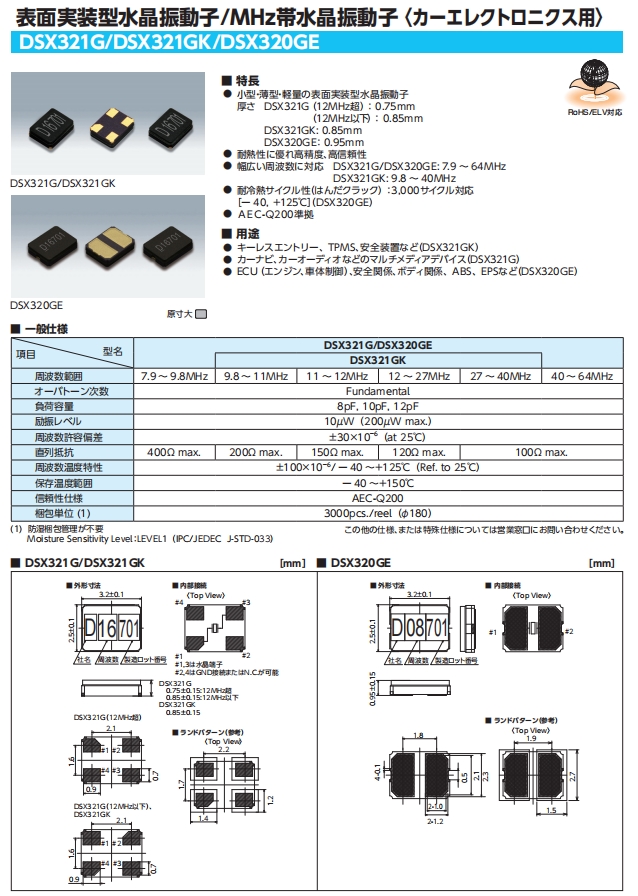

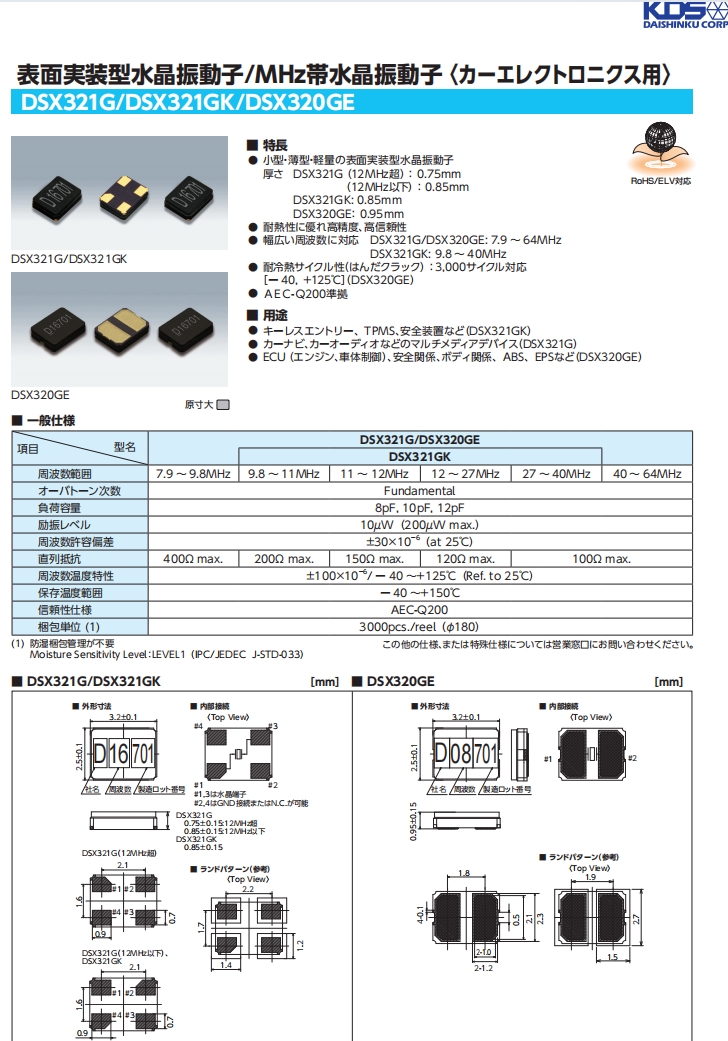

大真空KDS陶瓷晶振\DSX320G水晶振動子\1ZCM080000EE0A 參數表
|
|
|
||||
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
||||
|
|
|
||||
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
||||
|
|
|
||||
|
|
|
||||
大真空KDS陶瓷晶振\DSX320G水晶振動子\1ZCM080000EE0A
陶瓷晶振產品特性：
符合AEC-Q200標準
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 | 溫度 |
| KDS晶振 | 1TC125JHNS001 | DT-38 | 308 | 32.768KHZ | 12.5PF | 50PPM | |
| KDS晶振 | 1TC125AFWS027 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM | |
| KDS晶振 | 1TC070DFNS012 | DT-38 | 308 | 32.768KHZ | 7PF | 20PPM | |
| KDS晶振 | DT-38 | 308 | 32.768KHZ | 12.5PF | 200P | ||
| KDS晶振 | 1TJS060DJ4A739Q | DMX-26S | 8038 | 32.768K | 6PF | 20PPM | |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000M | 10PF | 20PPM | |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12M | 10PF | 20PPM | |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000M | 7PF | 20PPM | |
| 日本KDS晶振 | 1C707600CC1B | DSX530GA | 5032 | 7.600M | 10PF | 30PPM | |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1ZCP37400AA0H | DSX211AL | 2016 | 37.400M | |||
| KDS晶振 | 1ZZNAE38400AB0A | DSX211SH | 2016 | 38.400M | 10PF | 10PPM | |
| KDS晶振 | 1ZZHAM24000BB0B | DSX1612S | 1612 | 24.000M | |||
| KDS晶振 | 1ZZHAM26000AB0A | DSX1612S | 1612 | 26.000M | |||
| KDS晶振 | 1ZZCAA27120CD0A | DSX211G | 2016 | 27.12M | |||
| KDS晶振 | 1ZZNAE38400AA0C | DSX211SH | 2016 | 38.400M | |||
| KDS晶振 | 7AE01200A00 | DSX221G | 2520 | 12.000M | 8PF | ||
| KDS晶振 | 1ZCB26000AB0R | DSX221G | 2520 | 26.000M | |||
| KDS晶振 | 1XTV36864HBA | DSA321SCM | 3225 | 36.864M | |||
| KDS晶振 | 1CG12288EE1C | DSX630G | 6035 | 12.288M | |||
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000M | 9PF | 10ppm | |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000M | 12PF | 15ppm | |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000M | 10PF | 30ppm | |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1C208000BC0R | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 7AD00800A1C | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 1C208000CE0H | DSX321G | 3225 | 8.000M | 10PF | 20PPM | |
| KDS晶振 | 1C208000EE0BL | DSX321G | 3225 | 8.000M | 12PF | 20PPM | 40~125度 |
| KDS晶振 | 1C208000EZ0G汽車 | DSX321G | 3225 | 8.000M | 8PF | 30PPM | 40~85度 |
| KDS晶振 | 1N210000EE0X | DSX321G | 3225 | 10.000M | 10PF | ||
| KDS晶振 | 7AD01200A1R | DSX321G | 3225 | 12.000M | 8PF | 20ppm | |
| KDS晶振 | 1N212000BC0AK | DSX321G | 3225 | 12.000M | 10PF | 20ppm | |
| KDS晶振 | 1C213080CC0A | DSX321G | 3225 | 13.080M | 8PF | ||
| KDS晶振 | 1C232000ABOV | DSX321G | 3225 | 32.000M | 6PF | 10PPM | |
| KDS晶振 | 1N254000BB0M | DSX321G | 3225 | 54.000M | 19PF | 15PPM | |
| KDS晶振 | 1C216000EE0AW | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1N216000EE0BE | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1C216000BF0B | DSX321G | 3225 | 16.000M | |||
| KDS晶振 | 1C319200AA0A | DSX321G | 3225 | 19.200M | 8PF | 10PPM | |
| KDS晶振 | 1C220000AA0K | DSX321G | 3225 | 20.000M | |||
| KDS晶振 | 1C224000BE0K | DSX321G | 3225 | 24.000M | |||
| KDS晶振 | 1N225000BC0CT | DSX321G | 3225 | 25.000M | 7.5PF | ||
| KDS晶振 | 1N226000AA0G | DSX321G | 3225 | 26.000M | 12.5PF | 10ppm | |
| KDS晶振 | 1N226000AA0E | DSX321G | 3225 | 26.000M | 8.1PF | 10PPM | |
| KDS晶振 | 1C214745CE0E | DSX321G | 3225 | 14.7456M | |||
| KDS晶振 | 1C224576AC0A | DSX321G | 3225 | 24.576M | |||
| KDS晶振 | 1N226000AB0M | DSX321G | 3225 | 26.000M | 8PF | 8PPM | |
| KDS晶振 | 1N226000AB0J | DSX321G | 3225 | 26.000M | 11PF | 10PPM | |
| KDS晶振 | 1C226000BE0D | DSX321G | 3225 | 26.000M | |||
| KDS晶振 | 1N227000AB0N | DSX321G | 3225 | 27.000M | |||
| KDS晶振 | 1C233333BC0G | DSX321G | 3225 | 33.333333M | |||
| KDS晶振 | 1N340000LA0B | DSX321G | 3225 | 40.000M | |||
| KDS晶振 | 1C340000LA0A | DSX321G | 3225 | 40.000M | 8PF | ||
| KDS晶振 | 1C262400BK0A | DSX321G | 3225 | 62.4M | |||
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000M | 9PF | 50ppm | |
| KDS晶振 | 1BASAMPLE | DSX321G | 3225 | 27.000M | 9PF | 50ppm | |
| KDS晶振 | 1C227000BBAH | DSX321G | 3225 | 27.000M | 11PF | 12ppm | |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000M | 11PF | 12PPM | |
| KDS晶振 | 1C228322EE0D | DSX321G | 3225 | 28.322M | 10PF | 50PPM | |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000M | 10PF | 30PPM | |
| KDS晶振 | 1C338400AA0B | DSX321G | 3225 | 38.400M | 10PF | 10PPM | |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6M | 10PF | 30PPM | |
| KDS晶振 | 1C254000CC0C | DSX321G | 3225 | 54.000M | 10PF | 30PPM | |
| KDS晶振 | 1N232000AA0N | DSX321G | 3225 | 32.000M | 12PF | ||
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000M | 15PF | 15PPM | 40~125度 |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000M | 10PF | 10PPM | |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000M | 10PF | 20ppm | |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000M | 8PF | 10ppm | |
| KDS晶振 | 1C736864CC1A | DSX530GA | 5032 | 36.864M | 8PF | 25PPM | |
| KDS晶振 | 1HX12288CD1A | DSX840GA | 8045 | 12.288M | 20PF | 30PPM | |
| KDS晶振 | 1CX40000EE1O | DSX840GA | 8045 | 40.000M | 18PF | 50ppm | |
| KDS晶振 | 1CW04000KK3C | DSX151GAL | 11.8*5.5 | 4.000M | |||
| KDS晶振 | 1CW08192EK3A | DSX151GAL | 11.8*5.5 | 8.192M | 15PF | 20ppm | |
| KDS晶振 | CW08000EK3B | DSX151GAL | 11.8*5.5 | 8.000M | |||
| KDS晶振 | 1AJ039286A | SMD-49 | 3.928231M | ||||
| KDS晶振 | 1AJ040003DJ | SMD-49 | 4.000M | ||||
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332M | 12PF | 20PPM | |
| KDS晶振 | 1AJ073726AV | SMD-49 | 7.3728M | ||||
| KDS晶振 | 1AJ099976A | SMD-49 | 9.9975M |
