- 編號：53539948
- 頻率：32.768KHz
- 尺寸：4.1x1.5x0.75mm
ST4115SB32768E0HPWZZ,ST4115SB,4115mm,Kyocera晶體
ST4115SB32768E0HPWZZ,ST4115SB,4115mm,Kyocera晶體,32.768KHz,音叉晶體，日本進口晶振，Kyocera晶振，京瓷晶振，型號：ST4115SB，編碼為：ST4115SB32768E0HPWZZ，頻率：32.768KHz，負載電容：9pF，精度：20ppm，工作...
.jpg)
TXC,NDK,希華.jpg)
ST4115SB32768E0HPWZZ,ST4115SB,4115mm,Kyocera晶體,32.768KHz,音叉晶體，日本進口晶振，Kyocera晶振，京瓷晶振，型號：ST4115SB，編碼為：ST4115SB32768E0HPWZZ，頻率：32.768KHz，負載電容：9pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：4.1x1.5x0.75mm，音叉晶體，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD晶振。具有超小型，輕薄型，高品質，耐熱及耐環境等特點。應用于：移動通訊設備，智能儀表晶振，汽車電子晶振，數字顯示晶振，電腦主板，智能家居晶振等應用。
格發TXC,NDK,希華.jpg)
.jpg)
ST4115SB32768E0HPWZZ,ST4115SB,4115mm,Kyocera晶體,32.768KHz,音叉晶體,參數表
| Item | Symbol | Specification | Units | Remarks | |||||||||||
| Nominal Frequency | f_nom | 32.768 | kHz | ||||||||||||
| Frequency Tolerance | f_tol | ±20 | x10一6 | @25℃ | |||||||||||
| Turnover Temperature | Ti | +25±5 | ℃ | ||||||||||||
| Parabolic Coefficient | B | 一0.04 max. | x10一6 | ||||||||||||
| Motional Resistance | R1 | 70 max. | k-ohm | ||||||||||||
| Motional Capacitance | C1 | 3.3 typ. | fF | ||||||||||||
| Shunt Capacitance | C0 | 1.5 typ. | pF | ||||||||||||
| Load Capacitance | CL | 12.5 | pF | Please consult us | |||||||||||
| Drive Level | DL | 0.1 | μW | ||||||||||||
| Operating Temp. Range | T_use | 一40 to +85 | ℃ | ||||||||||||
| Storage Temp. Range | T_stg | 一55 to +125 | ℃ | ||||||||||||
| Frequency Aging | f_age | ±3 | x10一6 | ||||||||||||
TXC,NDK,希華.jpg)

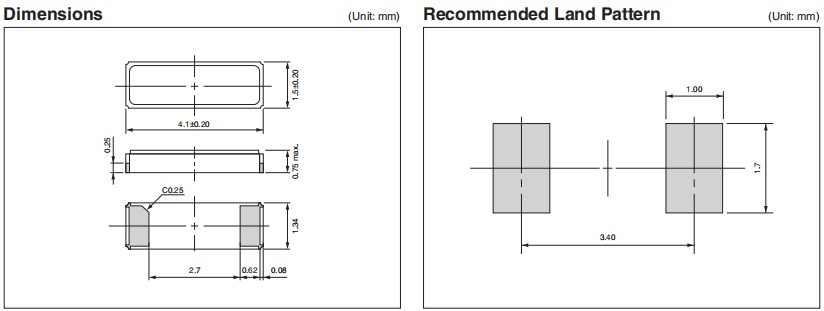

ST4115SB32768E0HPWZZ,ST4115SB,4115mm,Kyocera晶體,32.768KHz,音叉晶體,尺寸圖
格.JPG)
| 原廠編碼 | 晶振廠家 | 型號 | 頻率 | 工作溫度 |
| CX3225SB32000D0PSTC1 | Kyocera京瓷 | CX3225SB | 32MHz | -40°C ~ 125°C |
| ST3215SB32768H5HPWAA | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 85°C |
| CX2016DB32000D0WZRC1 | Kyocera京瓷 | CX2016DB | 32MHz | -25°C ~ 75°C |
| CX2520DB32000D0WZRC1 | Kyocera京瓷 | CX2520DB | 32MHz | -25°C ~ 75°C |
| CX3225SB32000D0FFFCC | Kyocera京瓷 | CX3225SB | 32MHz | -20°C ~ 70°C |
| ST3215SB32768C0HPWBB | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 85°C |
| ST2012SB32768C0HPWBB | Kyocera京瓷 | ST2012SB | 32.768kHz | -40°C ~ 85°C |
| CX2016DB32000D0FLJCC | Kyocera京瓷 | CX2016DB | 32MHz | -30°C ~ 85°C |
| CX3225CA32000D0HSSCC | Kyocera京瓷 | CX3225CA | 32MHz | -40°C ~ 125°C |
| CX3225SB32000D0FLJCC | Kyocera京瓷 | CX3225SB | 32MHz | -30°C ~ 85°C |
| CX2016DB32000H0FLJC1 | Kyocera京瓷 | CX2016DB | 32MHz | -30°C ~ 85°C |
| CX2520DB32000D0GPSC1 | Kyocera京瓷 | CX2520DB | 32MHz | -30°C ~ 85°C |
| CX2520DB32000H0FLJC1 | Kyocera京瓷 | CX2520DB | 32MHz | -30°C ~ 85°C |
| ST3215SB32768C0HSZA1 | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 125°C |
| ST3215SB32768Z0HPWBB | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 85°C |
| CX3225GB32000P0HPQCC | Kyocera京瓷 | CX3225GB | 32MHz | -40°C ~ 85°C |
| CX3225GA32000D0PTVCC | Kyocera京瓷 | CX3225GA | 32MHz | -40°C ~ 150°C |
| ST3215SB32768H5HSZA1 | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 125°C |
| CX2520DB32000D0FLJCC | Kyocera京瓷 | CX2520DB | 32MHz | -30°C ~ 85°C |
| ST3215SB32768E0HPWBB | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 85°C |
| ST2012SB32768E0HPWBB | SMD晶振 | ST2012SB | 32.768kHz | -40°C ~ 85°C |
| CX3225SB32000H0FLJCC | Kyocera京瓷 | CX3225SB | 32MHz | -30°C ~ 85°C |
| CX3225GB32000D0HEQCC | Kyocera京瓷 | CX3225GB | 32MHz | -10°C ~ 70°C |
| CX3225SB32000D0FPLCC | Kyocera京瓷 | CX3225SB | 32MHz | -40°C ~ 85°C |
| ST3215SB32768B0HSZA1 | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 125°C |
| ST3215SB32768E0HSZB1 | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 125°C |
| ST3215SB32768B0HPWB3 | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 85°C |
| ST2012SB32768Z0HPWB4 | Kyocera京瓷 | ST2012SB | 32.768kHz | -40°C ~ 85°C |
| ST3215SB32768E0HPWAA | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 85°C |
| CX2016DB32000D0WPRC1 | Kyocera京瓷 | CX2016DB | 32MHz | -25°C ~ 75°C |
| ST3215SB32768H5WZZAP | Kyocera京瓷 | ST3215SB | 32.768kHz | -25°C ~ 75°C |
| ST2012SB32768H5WZZAP | Kyocera京瓷 | ST2012SB | 32.768kHz | -25°C ~ 75°C |
| CX2016DB32000D0GPSC1 | Kyocera京瓷 | CX2016DB | 32MHz | -40°C ~ 85°C |
| CX3225SB32000D0GPSCC | Kyocera京瓷 | CX3225SB | 32MHz | -40°C ~ 85°C |
| CX3225GB32000D0HPQCC | Kyocera京瓷 | CX3225GB | 32MHz | -40°C ~ 85°C |
| ST2012SB32768H5HPWAA | Kyocera京瓷 | ST2012SB | 32.768kHz | -40°C ~ 85°C |
| CX2520DB32000D0GEJCC | Kyocera京瓷 | CX2520DB | 32MHz | -10°C ~ 70°C |
| ST4115SB32768H5HPWZZ | Kyocera京瓷 | ST4115SB | 32.768kHz | -40°C ~ 85°C |
| ST4115SB32768E0HPWZZ | Kyocera京瓷 | ST4115SB | 32.768kHz | -40°C ~ 85°C |
| ST3215SB32768H5HPWZZ | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 85°C |
| ST3215SB32768E0HPWZZ | Kyocera京瓷 | ST3215SB | 32.768kHz | -40°C ~ 85°C |
| CX3225GB32000D0HEQZ1 | Kyocera京瓷 | CX3225GB | 32MHz | -10°C ~ 70°C |
| CX3225GB32000D0HPQZ1 | Kyocera京瓷 | CX3225GB | 32MHz | -40°C ~ 85°C |
| CX2016DB32000D0FLJZ1 | Kyocera京瓷 | CX2016DB | 32MHz | -30°C ~ 85°C |
| CX2520DB32000D0FLJZ1 | Kyocera京瓷 | CX2520DB | 32MHz | -30°C ~ 85°C |
| CX2520DB32000D0GEJZ1 | Kyocera京瓷 | CX2520DB | 32MHz | -10°C ~ 70°C |
| CX3225CA32000D0HSSZ1 | Kyocera京瓷 | CX3225CA | 32MHz | -40°C ~ 125°C |
| CX3225GA32000D0PTVZ1 | Kyocera京瓷 | CX3225GA | 32MHz | -40°C ~ 150°C |
| CX3225GB32000P0HPQZ1 | Kyocera京瓷 | CX3225GB | 32MHz | -40°C ~ 85°C |
