石英晶體振蕩器
- 編號：56417902
- 頻率：25.0MHz
- 尺寸：2.5*2.0mm

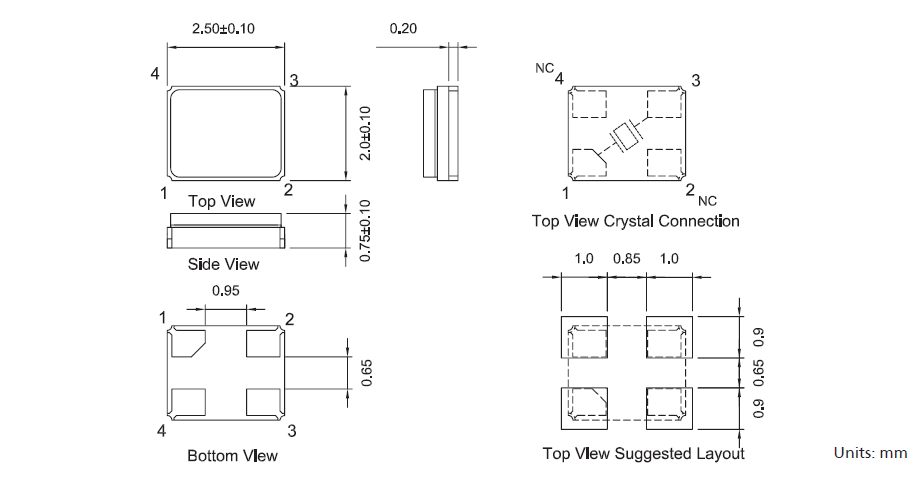

7S-25.000MAHE-T,7S陶瓷晶振,2520mm貼片晶振
臺灣TXC晶振以晶振精度高,穩定性好,目前趨于小型化,低功耗等方向發展,這款7S-25.000MAHE-T的7S陶瓷晶振,超薄設計2520mm貼片晶振,又具有良好的耐熱性深受廣大用戶信賴,以可靠的產品質量在業界中小有名氣.
.jpg)
7S-25.000MAHE-T,7S陶瓷晶振,2520mm貼片晶振,尺寸為2520mm貼片晶振,編碼7S-25.000MAHE-T,7S陶瓷晶振是臺灣TXC晶振發行的一款陶瓷諧振器,幾十年的晶振技術經驗得到了許多企業的肯定,從客戶需求分析,概要設計,詳細設計,編碼實現到測試,最終實現及維護等都有一套規范而實用的方法,被廣泛運用到藍牙晶振,音響晶振,智能門鎖,平板電腦晶振,熱成像晶振等行業,
7S-25.000MAHE-T,7S陶瓷晶振,2520mm貼片晶振
| 原廠編碼 | 7S-25.000MAHE-T |
| 頻率 | 25.0MHz |
| 廠家 | TXC晶振 |
| 型號 | 7S |
| 頻率偏差 | ±30ppm |
| 負載電容 | 12pF |
| 工作溫度 | -40°C ~ 85°C |
| 電阻 | 80Ohm |
7S-25.000MAHE-T,7S陶瓷晶振,2520mm貼片晶振
.png)
.jpg)
| 7A-27.120MAAE-T | TXC晶振 | 7A | 27.12MHz | ±30ppm | ±30ppm | 12pF |
| 7A-24.000MAAJ-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 18pF |
| 7A-16.000MAAJ-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 18pF |
| 7A-8.000MAAJ-T | TXC晶振 | 7A | 8MHz | ±30ppm | ±30ppm | 18pF |
| 7A-12.000MAAJ-T | TXC晶振 | 7A | 12MHz | ±30ppm | ±30ppm | 18pF |
| 7A-25.000MAAJ-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 18pF |
| 7A-27.120MAAJ-T | TXC晶振 | 7A | 27.12MHz | ±30ppm | ±30ppm | 18pF |
| 7A-24.000MAHE-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 12pF |
| 7A-10.000MAAJ-T | TXC晶振 | 7A | 10MHz | ±30ppm | ±30ppm | 18pF |
| 7A-25.000MAAE-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 12pF |
| 7A-10.000MAAE-T | TXC晶振 | 7A | 10MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.7456MAAJ-T | TXC晶振 | 7A | 14.7456MHz | ±30ppm | ±30ppm | 18pF |
| 7A-18.432MAAJ-T | TXC晶振 | 7A | 18.432MHz | ±30ppm | ±30ppm | 18pF |
| 7A-12.288MAAJ-T | TXC晶振 | 7A | 12.288MHz | ±30ppm | ±30ppm | 18pF |
| 7A-20.000MAAJ-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 18pF |
| 7A-28.63636MAAJ-T | TXC晶振 | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF |
| 7A-16.000MAHE-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 12pF |
| 7A-48.000MAAJ-T | TXC晶振 | 7A | 48MHz | ±30ppm | ±30ppm | 18pF |
| 7A-27.000MAAJ-T | TXC晶振 | 7A | 27MHz | ±30ppm | ±30ppm | 18pF |
| 7A-26.000MAAJ-T | TXC晶振 | 7A | 26MHz | ±30ppm | ±30ppm | 18pF |
| 7A-20.000MAHE-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 12pF |
| 7A-25.000MAHE-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.7456MAAE-T | TXC晶振 | 7A | 14.7456MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.31818MAAE-T | TXC晶振 | 7A | 14.31818MHz | ±30ppm | ±30ppm | 12pF |
| 7A-24.000MAAE-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 12pF |
| 7A-16.000MAAE-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 12pF |
| 7A-20.000MAAE-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 12pF |
| 7A-12.000MAAE-T | TXC晶振 | 7A | 12MHz | ±30ppm | ±30ppm | 12pF |
| 7A-22.1184MAAJ-T | TXC晶振 | 7A | 22.1184MHz | ±30ppm | ±30ppm | 18pF |
| 7A-29.4912MAAJ-T | TXC晶振 | 7A | 29.4912MHz | ±30ppm | ±30ppm | 18pF |
| 7A-30.000MAAJ-T | TXC晶振 | 7A | 30MHz | ±30ppm | ±30ppm | 18pF |
| 7A-14.31818MAAJ-T | TXC晶振 | 7A | 14.31818MHz | ±30ppm | ±30ppm | 18pF |
| 7A-49.152MAAJ-T | TXC晶振 | 7A | 49.152MHz | ±30ppm | ±30ppm | 18pF |
| 7A-24.576MAAJ-T | TXC晶振 | 7A | 24.576MHz | ±30ppm | ±30ppm | 18pF |
| 7A-18.432MBBK-T | TXC晶振 | 7A | 18.432MHz | ±50ppm | ±50ppm | 20pF |
| 7A-24.576MBBK-T | TXC晶振 | 7A | 24.576MHz | ±50ppm | ±50ppm | 20pF |
| 7A-28.63636MAHJ-T | TXC晶振 | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF |
| 7A-33.3333MAAE-T | TXC晶振 | 7A | 33.3333MHz | ±30ppm | ±30ppm | 12pF |
| 7A-13.000MAHJ-T | TXC晶振 | 7A | 13MHz | ±30ppm | ±30ppm | 18pF |
| 7A-40.000MAHE-T | TXC晶振 | 7A | 40MHz | ±30ppm | ±30ppm | 12pF |
| 7A-18.432MAAE-T | TXC晶振 | 7A | 18.432MHz | ±30ppm | ±30ppm | 12pF |
| 7A-11.0592MAAE-T | TXC晶振 | 7A | 11.0592MHz | ±30ppm | ±30ppm | 12pF |
| 7A-8.000MAHJ-T | TXC晶振 | 7A | 8MHz | ±30ppm | ±30ppm | 18pF |
| 7A-22.1184MAAE-T | TXC晶振 | 7A | 22.1184MHz | ±30ppm | ±30ppm | 12pF |
| 7A-13.560MAAE-T | TXC晶振 | 7A | 13.56MHz | ±30ppm | ±30ppm | 12pF |
