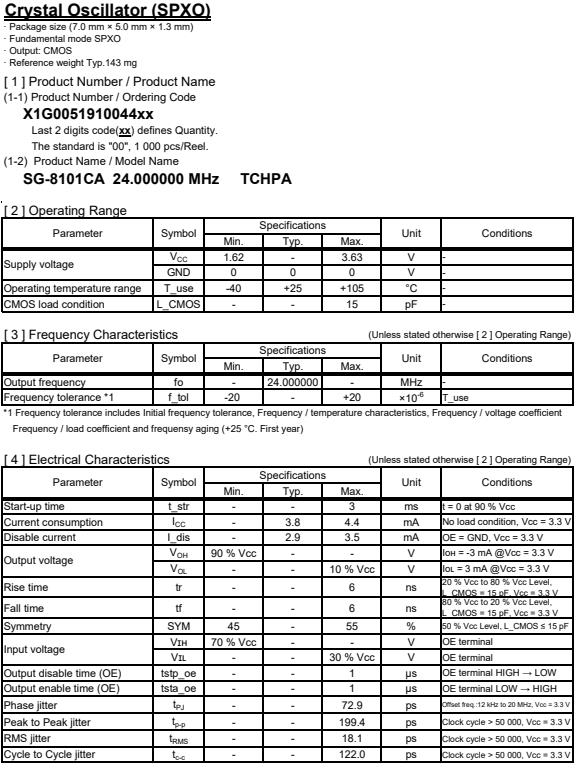

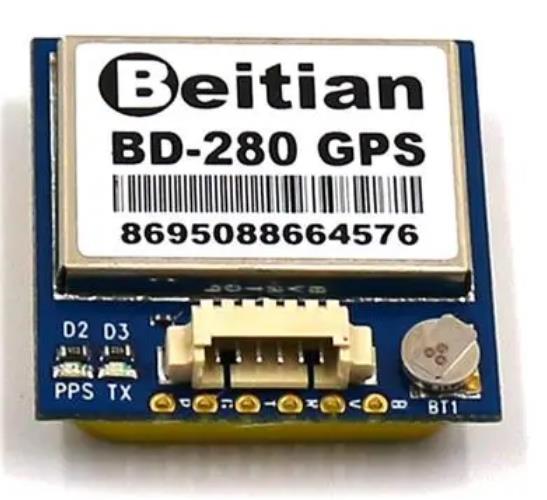

GNSS授時模塊專用愛普生有源晶振X1G005191004400，愛普生的SG-8101系列是具有CMOS輸出的可編程晶體振蕩器系列。SG-8101CA晶振，愛普生晶振編碼X1G005191004400，頻率24.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.40 mm，工作溫度-40至+105°C，頻率公差±20ppm，而這個系列提供了相同的頻率和其他參數的簡單可編程性比較早SG-8002/SG-8003系列，它們還具有更寬的工作溫度范圍，最高極限為105°C，廣泛用于GNSS授時模塊，藍牙模塊等。

Product Number	愛普生晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1G005191003800	SG-8101CA	50.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003900	SG-8101CA	16.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191004000	SG-8101CA	20.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191004100	SG-8101CA	10.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191004200	SG-8101CA	12.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191004300	SG-8101CA	24.576000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191004400	SG-8101CA	24.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191004500	SG-8101CA	27.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191004600	SG-8101CA	30.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191004700	SG-8101CA	4.096000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191004800	SG-8101CA	40.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191004900	SG-8101CA	64.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191005000	SG-8101CA	50.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191005100	SG-8101CA	24.540000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191005200	SG-8101CA	24.540000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191005300	SG-8101CA	43.545600 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191005400	SG-8101CA	1.228800 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191005500	SG-8101CA	16.666600 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

除了2.5 × 2.0毫米的封裝，這將使電子制造商節省電路板空間振蕩器也將提供以下流行的包裝尺寸:3.2 × 2.5 mm, 5.0 × 3.2 mm和7.0 × 5.0 mm。SG-8101系列中的石英晶體振蕩器有大約66%的緊密頻率公差和電流消耗比同類產品低50%，可廣泛使用環境條件。這也將大大提高性能，降低功率要求，速度快開發周期和小批量生產。
